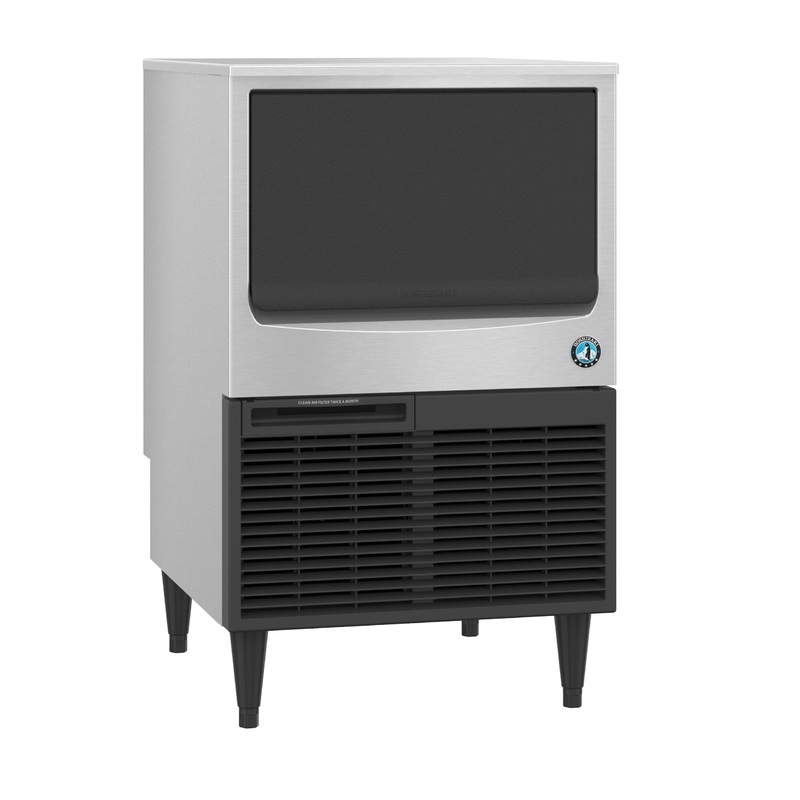

Hoshizaki KM-161BAJ Air Cooled Undercounter Crescent Cuber Icemaker, 24″ Wide, 163 lb/24 hr, 78 lb Storage Bin, 115V

Able to produce up to 163 lb of ice per 24 hrs, the Hoshizaki KM-161BAJ Air Cooled Undercounter Crescent Cuber Icemaker is reliable and includes a 78 lb built-in storage bin for convenience. It’s made with a strong stainless steel exterior and features sturdy legs for a stable structure.

The commercial icemaker has a power switch that’s accessible without panel removal while front-in, front-out airflow includes a removable air filter. It has an excellent R-134A refrigerant and features an H-GUARD Plus Antimicrobial Agent that improves protection to the included ice scoop. Plus, this ice scoop offers sanitary serving.

The EverCheck alert system produces an audible alarm when the unit needs maintenance to keep operators informed. It has a CycleSaver design to improve cleaning and increase energy efficiency. The stainless steel evaporatoris strong and improves production.

Ice Production: 163 lb per 24 hr
Storage Bin Capacity: 78 lb
Ice Shape: Crescent
UnitMeasurements: 39″ high x 23 3/4″ width x 28″ depth
Cooling Type: Air
Electrical: 115/60/1
Heat Rejection: 3050 BTU/hr
Refrigerant Type: R-134A
Ambient Temperature Range:45F to 100F
Water Temperature Range: 45F to 90F
Water Pressure: 10 psi to 113 psi
Warranty: 3 Year Ice Maker, 5 Years Evaporator, 5 Years on Compressor

FILES
Spec Sheet
Instruction Booklet
Service Manual
Parts List
